DSR-220AZ-+160kw-Direct-Driven-Screw-Air-Compressor

DSR-220AZ Direct Driven Screw Air Compressor

MODEL：DSR-220AZ

POWER：160KW

HORSEPOWER：220HP

Product desciption

◆ Voltage: 380V/50HZ. 7.5A、10A are direct startup, above 15A is star triangle start
◆ Other pressure (up to 16bar) screw air compressor, welcome to negotiate
◆ The company continuously improves the products and retains the right to change the design.Parameters are subject to change without prior notice
◆ A after the model represents air cooling and W represents water cooling

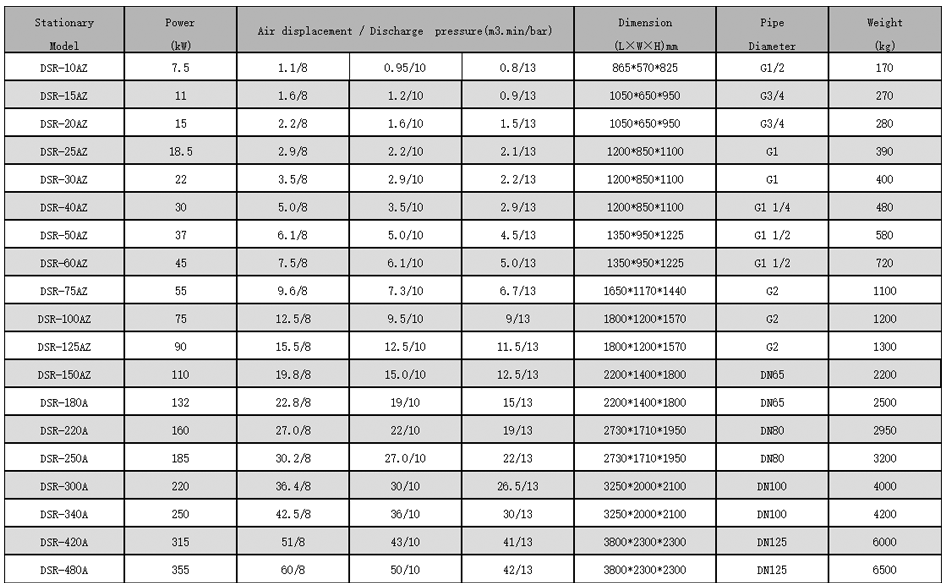

Technical parameters of direct driven screw air compressor

Stationary Model	Power (kW)	Air displacement / Discharge pressure(m3.min/bar)			Dimension (L×W×H)mm	Pipe Diameter	Weight (kg)
DSR-10AZ	7.5	1.1/8	0.95/10	0.8/13	865570825	G1/2	170
DSR-15AZ	11	1.6/8	1.2/10	0.9/13	1050650950	G3/4	270
DSR-20AZ	15	2.2/8	1.6/10	1.5/13	1050650950	G3/4	280
DSR-25AZ	18.5	2.9/8	2.2/10	2.1/13	12008501100	G1	390
DSR-30AZ	22	3.5/8	2.9/10	2.2/13	12008501100	G1	400
DSR-40AZ	30	5.0/8	3.5/10	2.9/13	12008501100	G1 1/4	480
DSR-50AZ	37	6.1/8	5.0/10	4.5/13	13509501225	G1 1/2	580
DSR-60AZ	45	7.5/8	6.1/10	5.0/13	13509501225	G1 1/2	720
DSR-75AZ	55	9.6/8	7.3/10	6.7/13	165011701440	G2	1100
DSR-100AZ	75	12.5/8	9.5/10	9/13	180012001570	G2	1200
DSR-125AZ	90	15.5/8	12.5/10	11.5/13	180012001570	G2	1300
DSR-150AZ	110	19.8/8	15.0/10	12.5/13	220014001800	DN65	2200
DSR-180A	132	22.8/8	19/10	15/13	220014001800	DN65	2500
DSR-220A	160	27.0/8	22/10	19/13	273017101950	DN80	2950
DSR-250A	185	30.2/8	27.0/10	22/13	273017101950	DN80	3200
DSR-300A	220	36.4/8	30/10	26.5/13	325020002100	DN100	4000
DSR-340A	250	42.5/8	36/10	30/13	325020002100	DN100	4200
DSR-420A	315	51/8	43/10	41/13	380023002300	DN125	6000
DSR-480A	355	60/8	50/10	42/13	380023002300	DN125	6500
